1973-1987 GM C10 Frame C-Notch Install
What is a C10 C-Notch Frame Kit?
A C-notch frame modification involves cutting a C-shaped section out of the truck's frame rails to allow for increased suspension travel and a lower ride height.
Benefits of a C-Notch Frame
• Improved suspension clearance
• Lower ride height
• Enhanced handling and stability
• Better overall appearance
C-notch frames are particularly popular among C10 owners who want to achieve a more aggressive stance without sacrificing functionality. By creating additional space for the rear axle to travel upwards, a C-notch allows for a lower ride height while maintaining proper suspension geometry.
When a C10 C-Notch Frame is Needed
Understanding when to install a C10 C-Notch frame is crucial for optimizing your classic truck's performance and aesthetics. Here's a detailed guide to help you determine the right time for this modification:
Key Indicators for Installing a C-Notch Frame
Lowering Your Truck
- If you're planning to lower your C10 significantly, a C-notch frame becomes essential. Lowering the truck without it can lead to inadequate suspension travel.
- Fact: Without proper suspension travel, you risk bottoming out, which can damage the frame and other components.
Improved Ride Quality
- A C-notch allows for greater axle movement, enhancing ride comfort and handling on lowered trucks.
- This modification helps in maintaining a smoother ride even on rough roads by preventing the axle from hitting the frame.
Increased Load Capacity
- For those who frequently carry heavy loads or tow with their C10, a C-notch frame provides additional clearance.
- The extra space helps accommodate the suspension’s movement under load, ensuring better stability and safety.
Preventing Frame Damage
- Constant bottoming out without a C-notch can lead to severe frame damage over time.
- Installing a C-notch prevents this issue by providing the necessary clearance for the rear axle.
C10 Lowering Guide
Looking to lower your C10 project? Check out our C10 lowering guide below
The Advantages of a UMI C10 C-Notch Kit
No Bed Rail Notching:
- Unlike many competitor kits that require cutting through the bed reinforcement rails, UMI’s design specifically eliminates this need, preserving the truck’s structural integrity and original value.
Exclusive Inner Support Plate:
- UMI’s inner support plate doubles as a convenient template, simplifying the installation process. This unique feature makes cutting and installation a breeze.
Visit the product page below to learn more
Play Video
How to Install a Frame Notch on a 1973-1987 GM C10
Tools Needed:
- Jack and Jack Stands
- Blocks (if lifting the bed)
- Marker and Straight Edge
- Plasma Cutter or Cutting Tool
- Grinder
- 3/8" Drill Bit
- 1/2" Drill Bit
- Wrenches and Ratchets
Step 1: Preparation
Organize all parts and hardware. Before starting the installation, make sure all the necessary components are present. Lift the truck bed off the frame. You can either use blocks to prop up the bed or remove it completely, depending on your workspace and preference.
Step 2: Position the Inner Plate

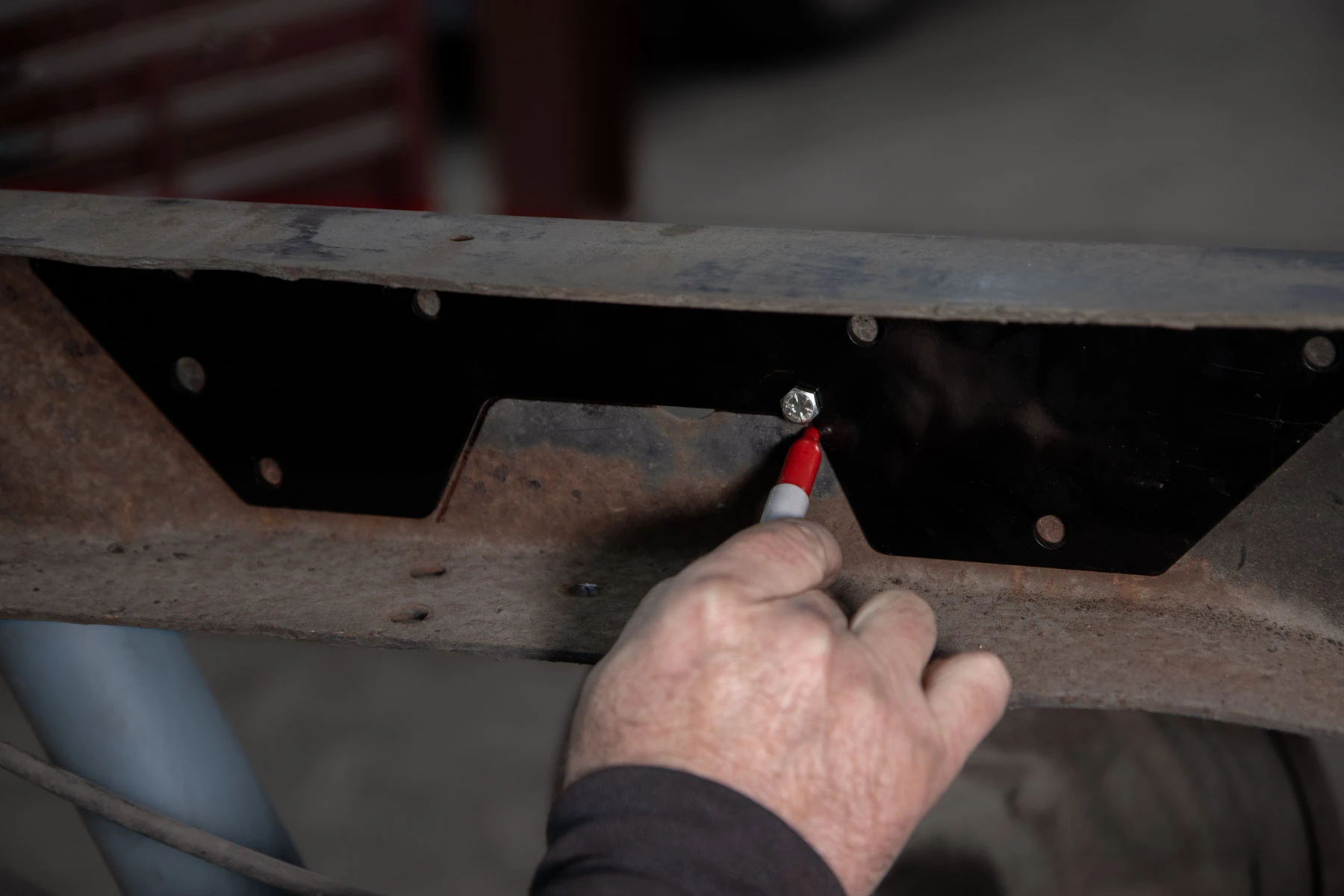

Place the inner plate inside the frame. Use a marker and straight edge to outline where the frame needs to be cut. This step is critical for ensuring that the notch fits correctly.
Step 3: Cutting the Frame
Use a plasma cutter or a suitable cutting tool to remove the section of the frame you've marked. Take your time to ensure accuracy and avoid damaging other components. Clean the cut area with a grinder to smooth out any rough edges and prepare for painting.
Step 4: Install the Notch Bracket
Insert the main notch bracket into the newly cut section of the frame. Secure it with a 1/4" black locator nut and bolt to hold it in place.
Step 5: Drill the Front Face Holes

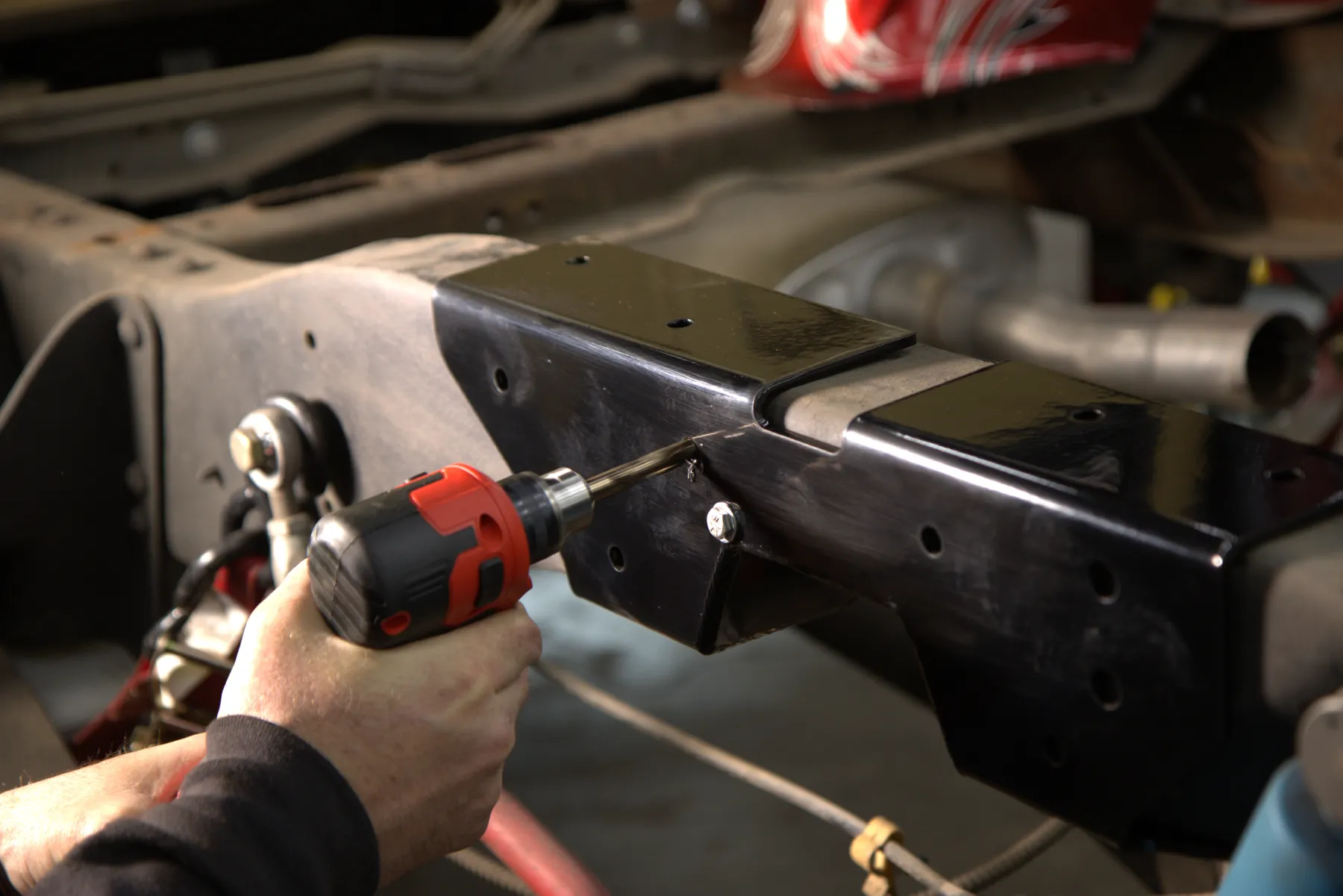

Using a 3/8" drill bit, drill holes into the front face of the frame. Bolt each hole using 1.25" 3/8" bolts and non-nylock nuts. This will help draw the notch into the frame and keep it steady for the next steps.
Step 6: Drill Remaining Holes
Continue by drilling the top and final face holes using a 3/8" and 1/2" drill bit respectively. Once all holes are drilled, the notch should be securely fitted.
Step 7: Paint the Frame
Remove the notch and apply paint to the frame where you’ve drilled and cut. This will help prevent rust and prolong the life of your frame.
Step 8: Final Installation

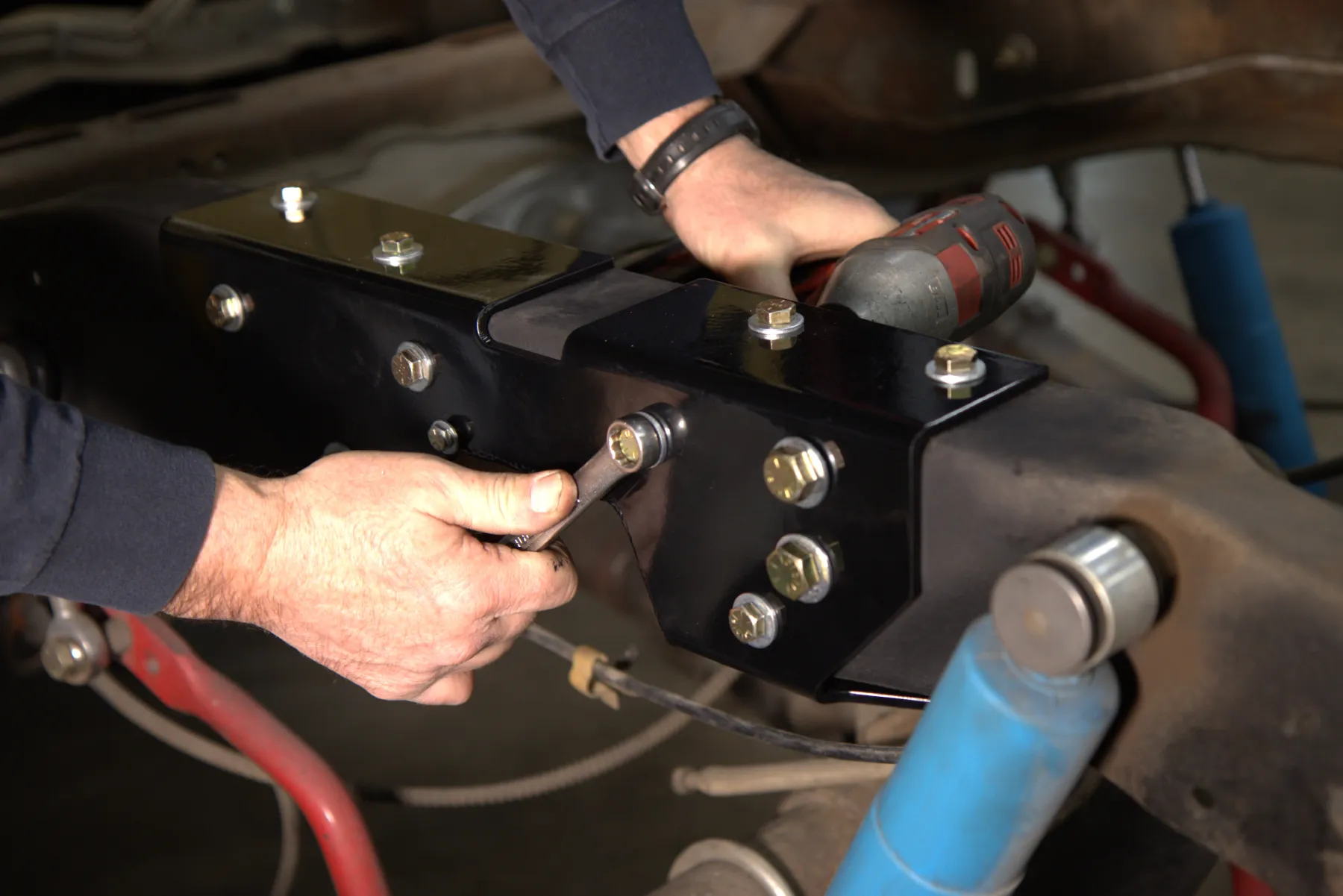

Reinstall the notch bracket along with the backing plate. Secure everything with nylock nuts. Don’t forget to attach the bump stops to complete the installation.
Step 9: Passenger Side Adjustments
Repeat the above steps on the passenger side. Additionally, grind off the rivets holding the brake line in place to allow for the notch installation.
Step 10: Reassemble and Finish
Reinstall the truck bed, bolt the wheels back on, and lower the truck from the jack stands.
