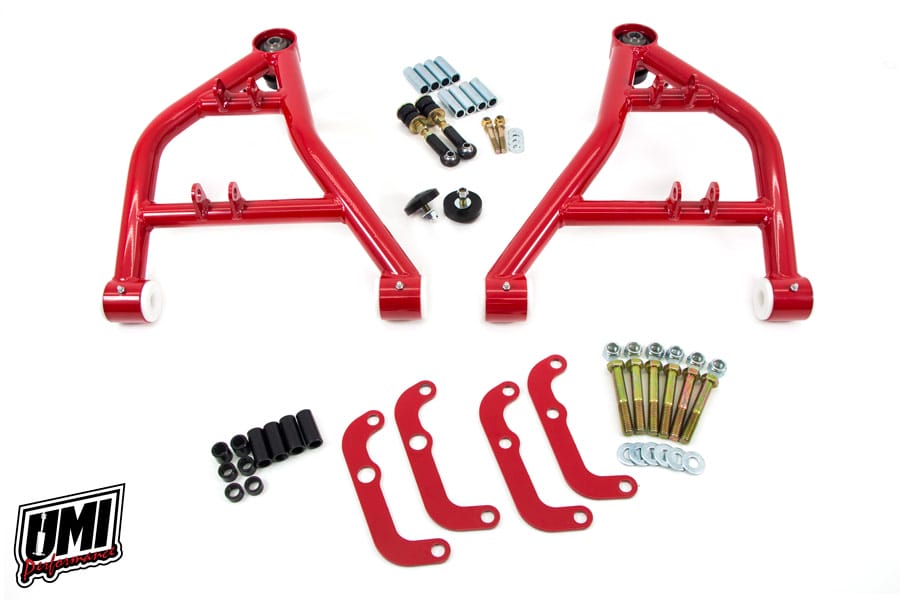

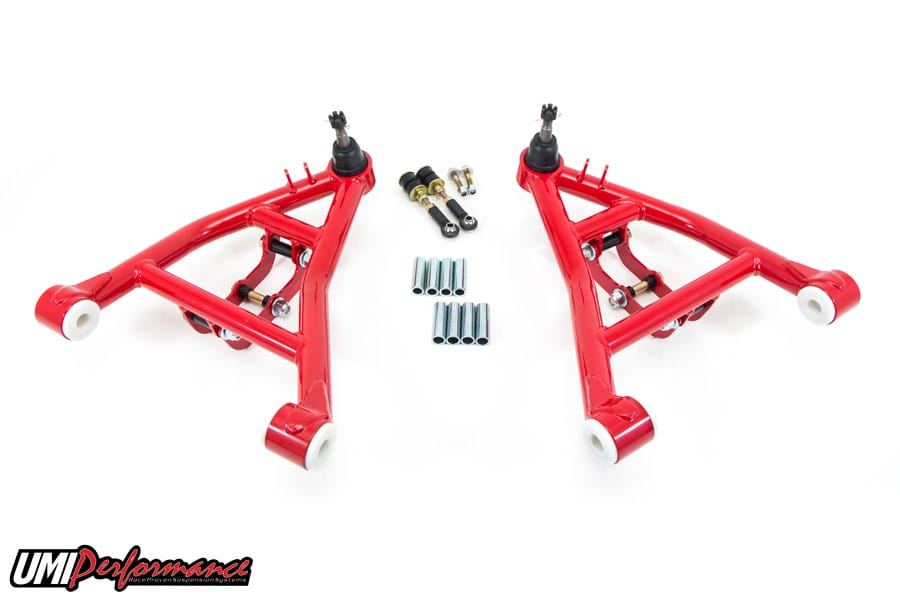

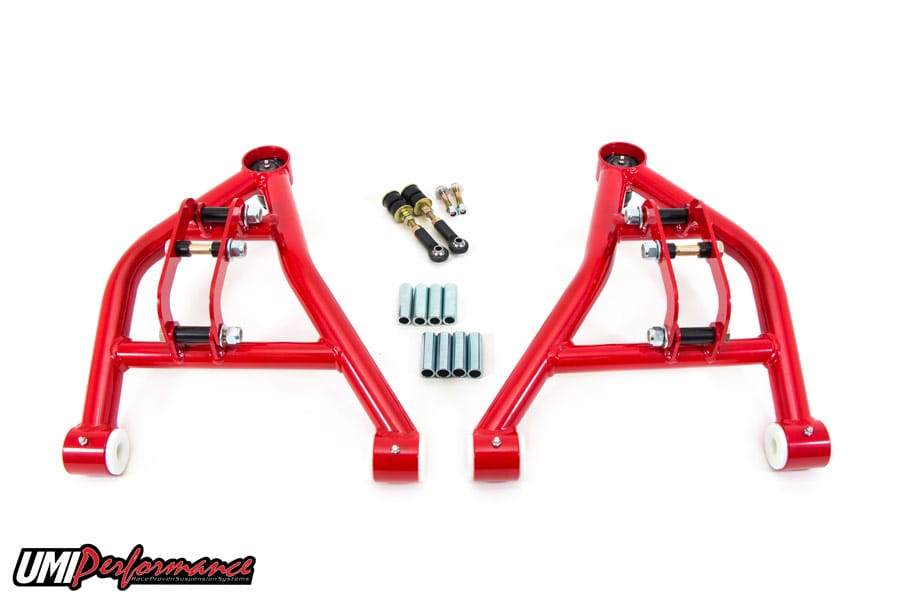

2655-1 – 1970-1981 GM F-Body Lower A-Arms, Tall Ball Joints, Race
$799.99
PRODUCT DESCRIPTION
UMI’s Corner Max line of race a-arms, specifically the P/N 2655-1, are designed to be the best performing stock mount a-arm upgrade on the market. These arms are strong, lightweight, and feature a removable lower mounting system for easy spring or shock changes at the track without separating the ball joints. The ball joint cup is strategically located to increase caster potential by up to 4 degrees and comes equipped with high quality Howe +3/4” tall ball joints. The double shear coilover mount accepts industry standard ½” rod end shocks and includes spacers for popular models. Additionally, a double shear sway bar mount and corresponding end link are included, fitting UMI sway bars as well as other factory fit options.
PRODUCT FEATURES
- Direct bolt-in for 1970-1981 Camaro and Firebird
- Camber curve and roll center height improved for incredible front end grip
- Coilover-only design saves weight over spring bucket versions
- Pair with UMI P/N 2656-1 for the ultimate handling package
- Lower ball joint relocated to increase caster by up to 4 degrees
- 10 degrees caster achievable when paired with UMI P/N 2656-1
- Enhances steering feel and straight line stability
- 1.500” USA Made DOM steel tubing construction
- Premium Howe +3/4” tall ball joints installed
- Includes Delrin bushings for smooth suspension travel and decreased deflection
- Swivel style sway bar mounts and hardware compatible with UMI P/N 4035, 4067, and most other factory eyelet style sway bars
- 100% Manufactured and raced with pride in Philipsburg, PA, USA
- Contact UMI technical support with any questions
- Optional New Hardware Kit:
- UMI offers the option of new high grade mounting hardware for classic Camaro or Firebird
- 1970-1974 cars use ½” standard hardware, 1975-1981 use 14mm metric hardware
- UMI a-arms supplied with both sets of mounting sleeves to accept either hardware sizes
- Hardware kits are Grade 8 standard and Grade 10.9 metric with Ny-lock nuts
This Product Features
Designed & Manufactured in the USA
Durable Powder-Coat
North American Raw Materials
Precision Bent DOM Tubing
Precision Laser Cut Components
Precision Welds
| Fitment | |
|---|---|
| Platform | |
| Manufacturer | |
| Direct Bolt-On |
Yes |
| Control Arm Style |
Tubular |
| Finish |
Powder Coat |
| UOM |
Pair |
| Material |
Mild Steel |
| Hardware |
Not Included |
| Ball Joint Height |
1/2" Taller |
| Modifications |
None |
| Bushing Type |
Delrin |
| Adjustable |
No |
Why Choose
UMI Performance
21 Years In The Industry
Play Video
North American Raw Materials
Proudly partnering with leading USA steel suppliers, we source the finest North American mined and milled steel
Precision Bent DOM Tubing
Machine-guided DOM tubing bends maintain correct geometry while maintaining material strength.
Laser Cut Plating
We take North-American sourced plating and precision-cut each component with the latest laser-cutting technology.
Durable Powder Coating
Each finished part is properly prepped and coated with high quality Tiger Dry Lac powder coat, providing a tough long-lasting finish.
Consistent Welds
Our highly-skilled welders and robotic-welders provide consistent welds and ultimate part penetration.
100% USA Made
We take pride in providing 100% USA-Manufactured suspension components.
Shipping Guidelines
Flat Rate Shipping ($11.99) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.
All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.
Return Information
All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.
Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]
This '2655-1 - 1970-1981 GM F-Body Lower A-Arms, Tall Ball Joints, Race' fits the following platforms:
1970-1981 GM F-Body
- 1970-1981 Chevrolet Camaro
- 1970-1981 Pontiac Firebird
This 2655-1 - 1970-1981 GM F-Body Lower A-Arms, Tall Ball Joints, Race fits the following vehicles:
Chevrolet
Camaro
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
Pontiac
Firebird
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
