2147 – 1982-2002 GM F-Body Rear Sway Bar, Splined
New

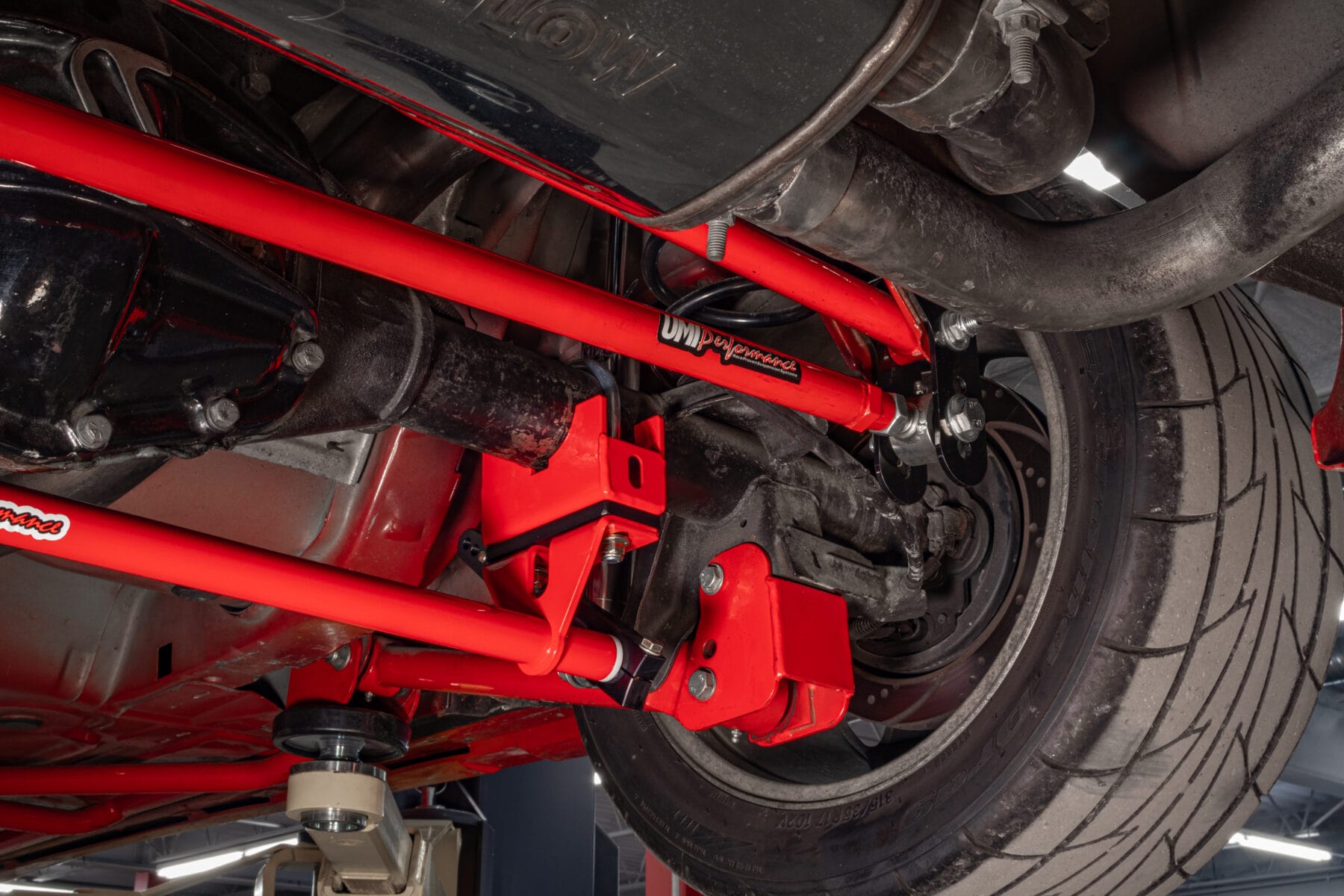

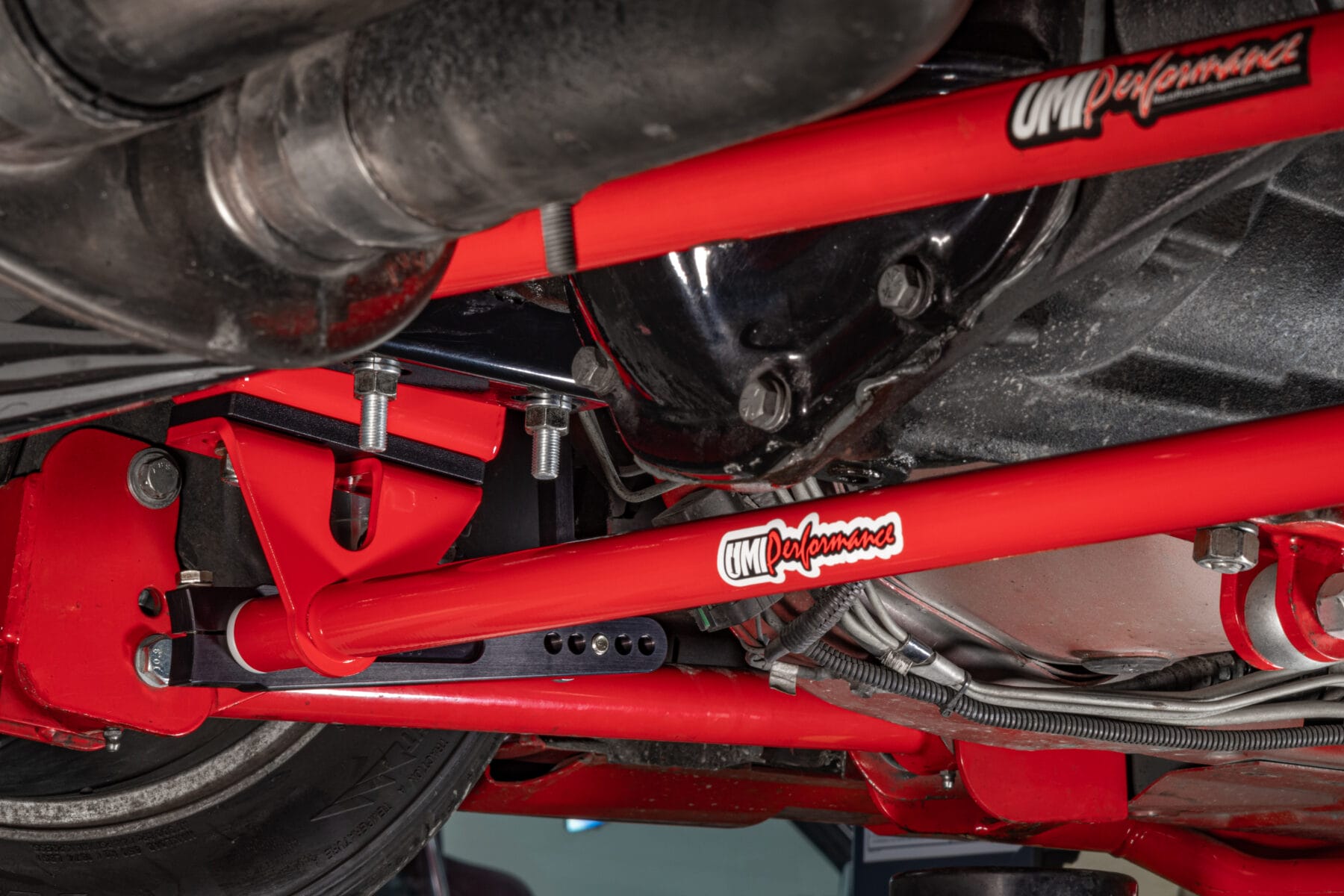

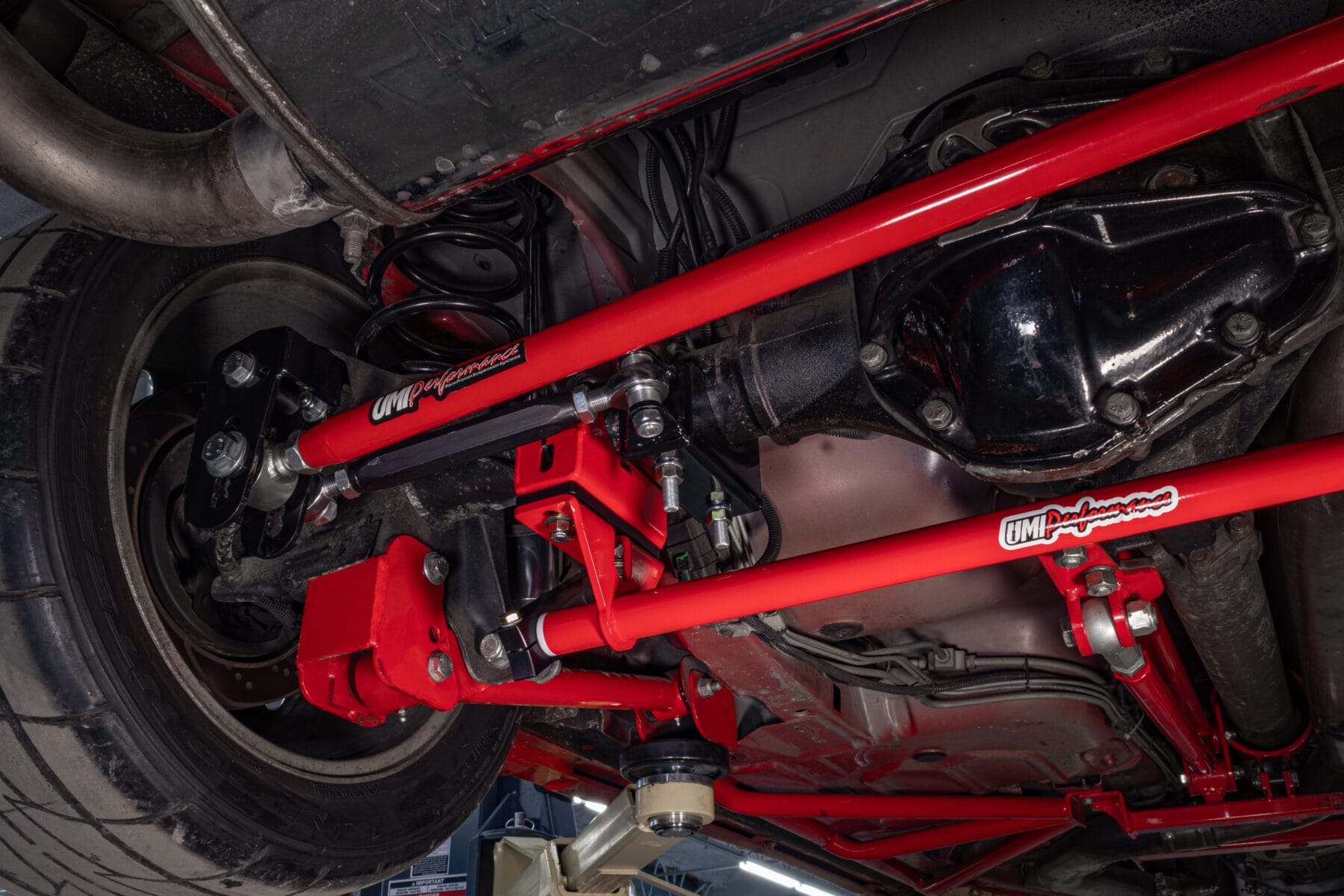

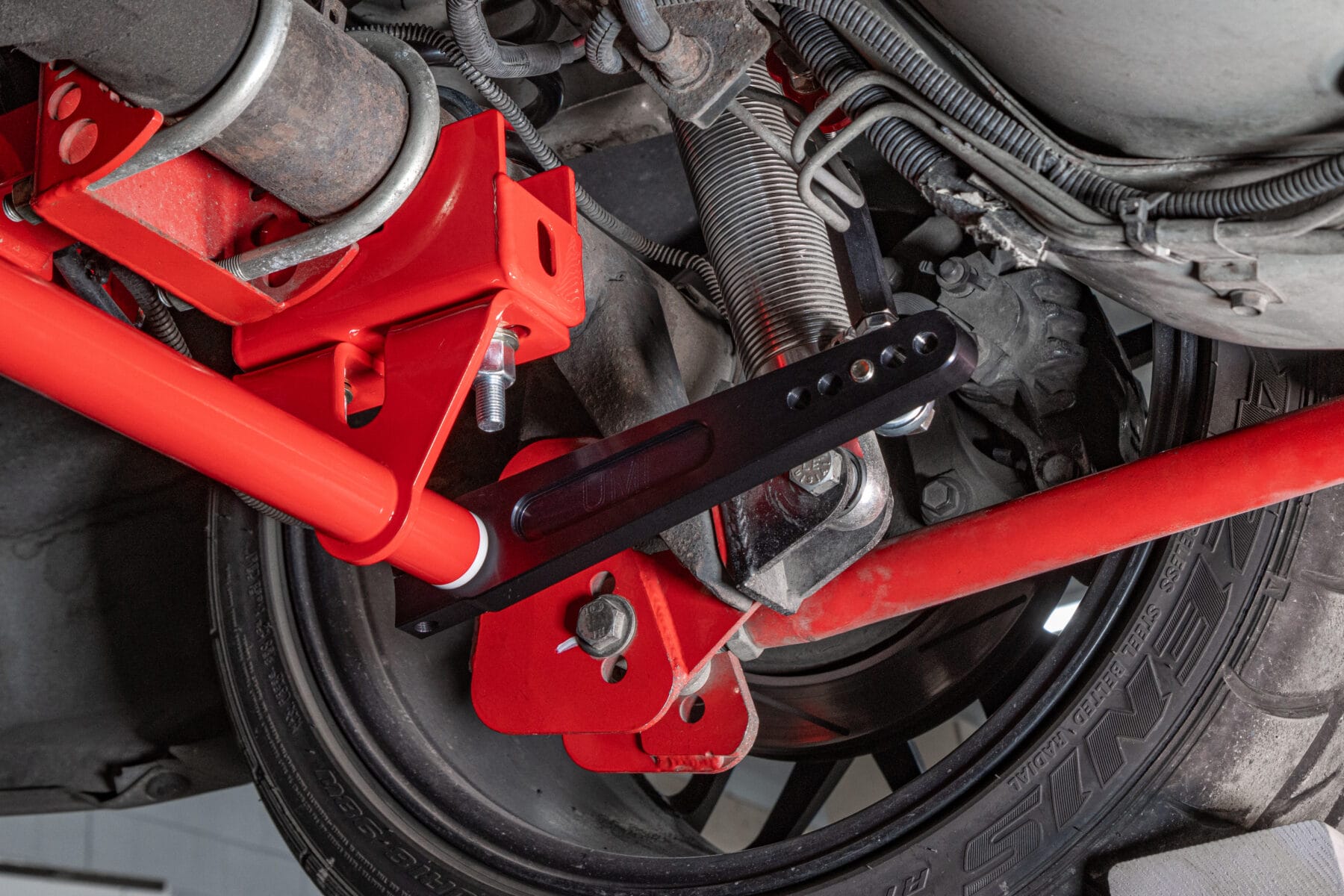

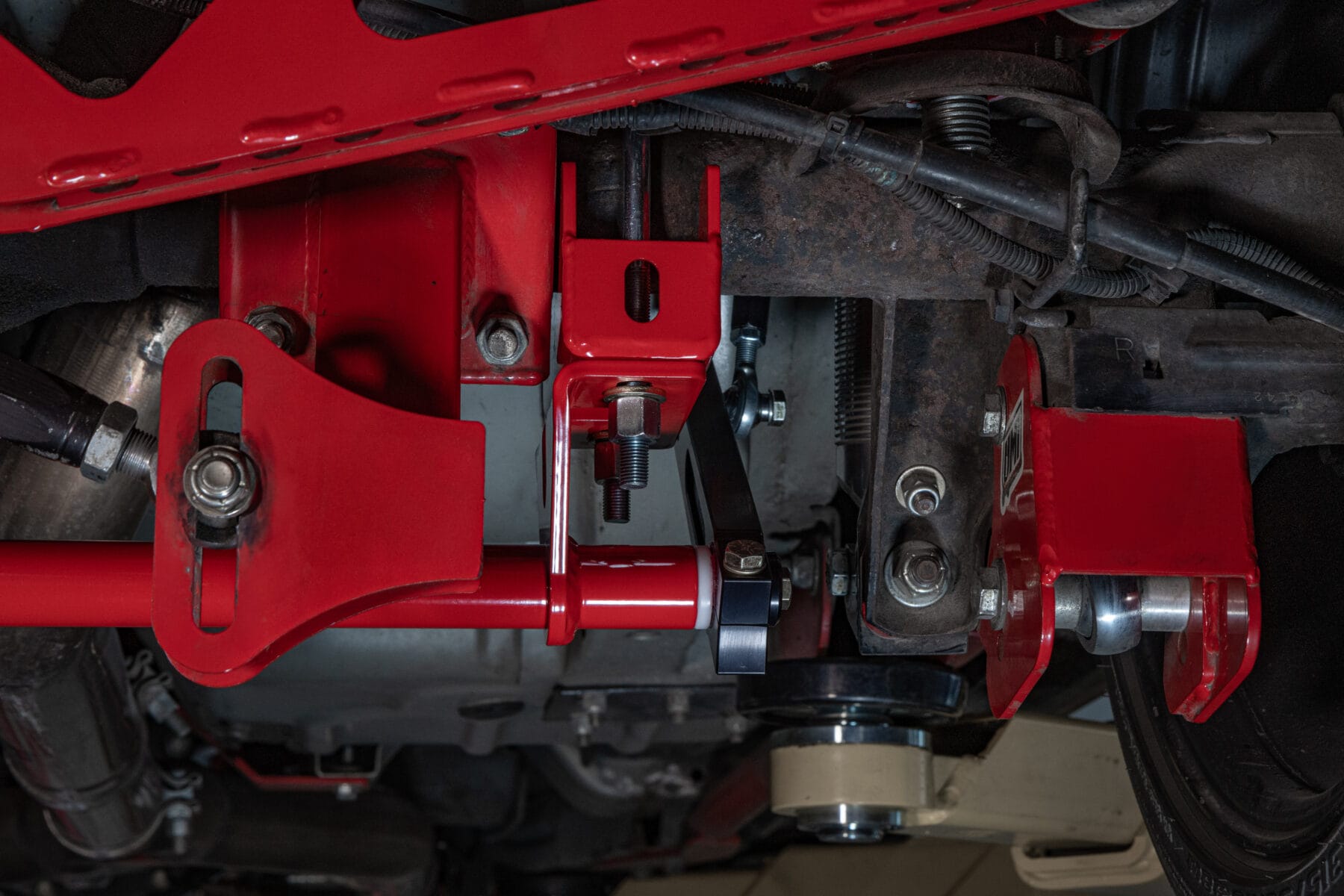

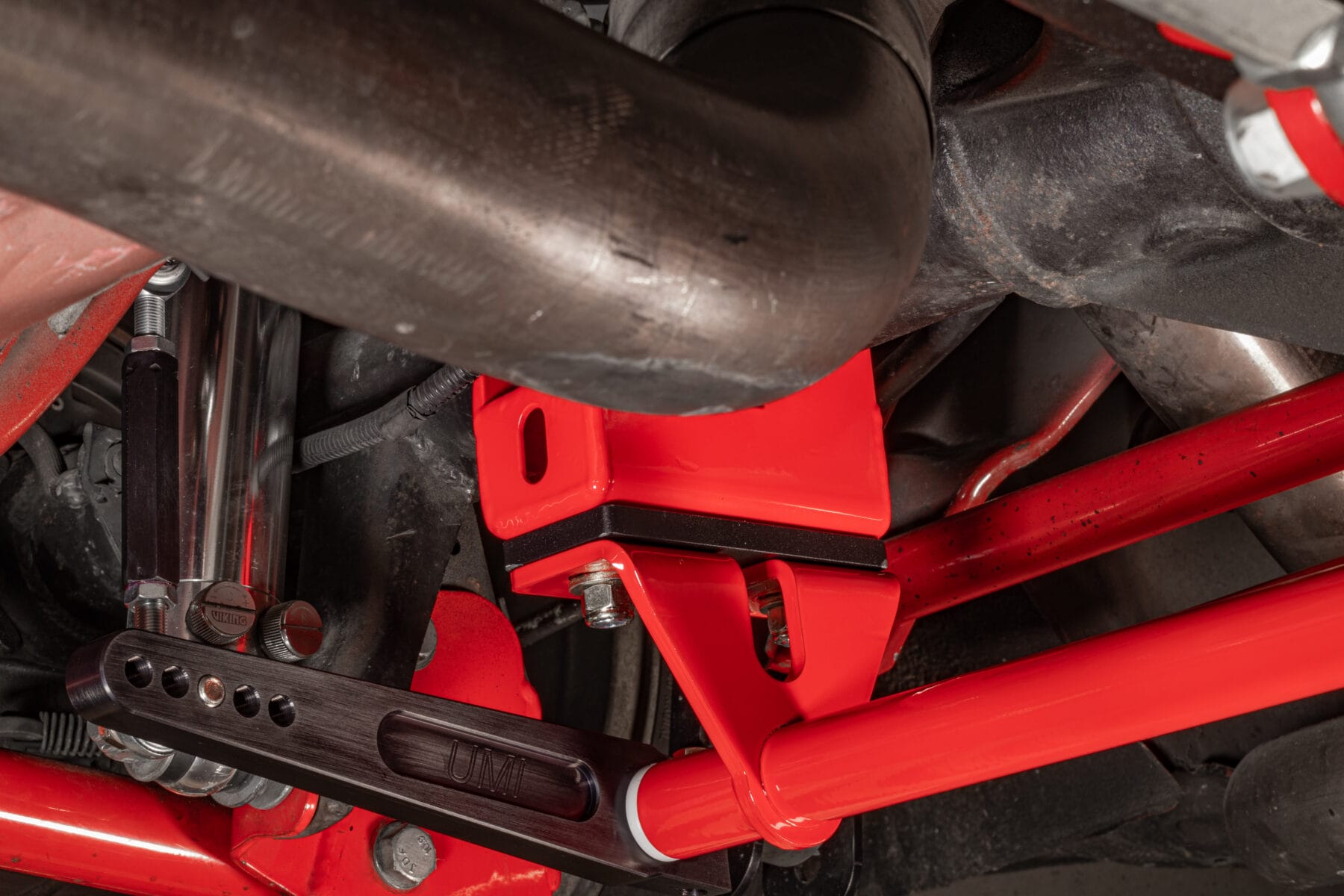

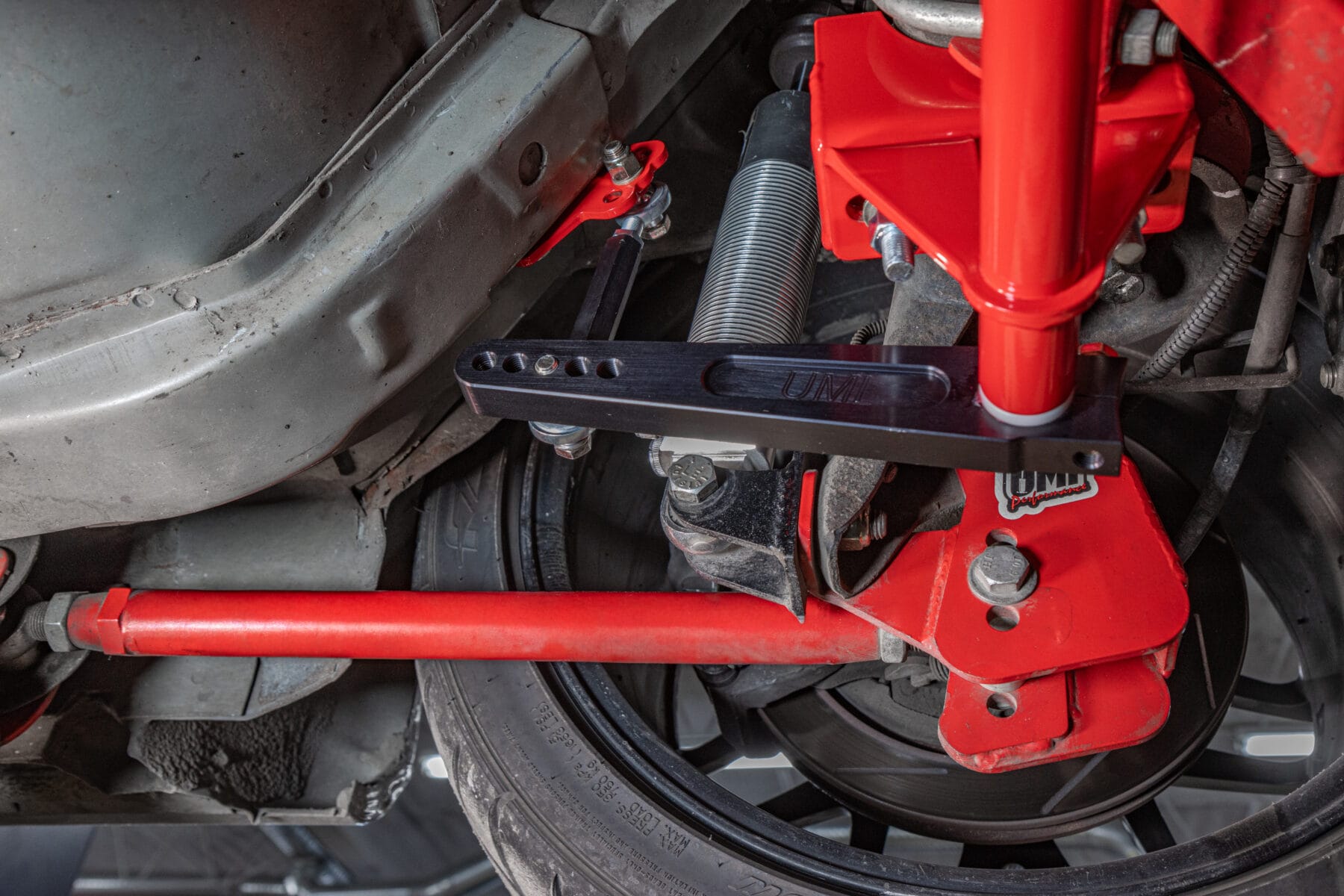

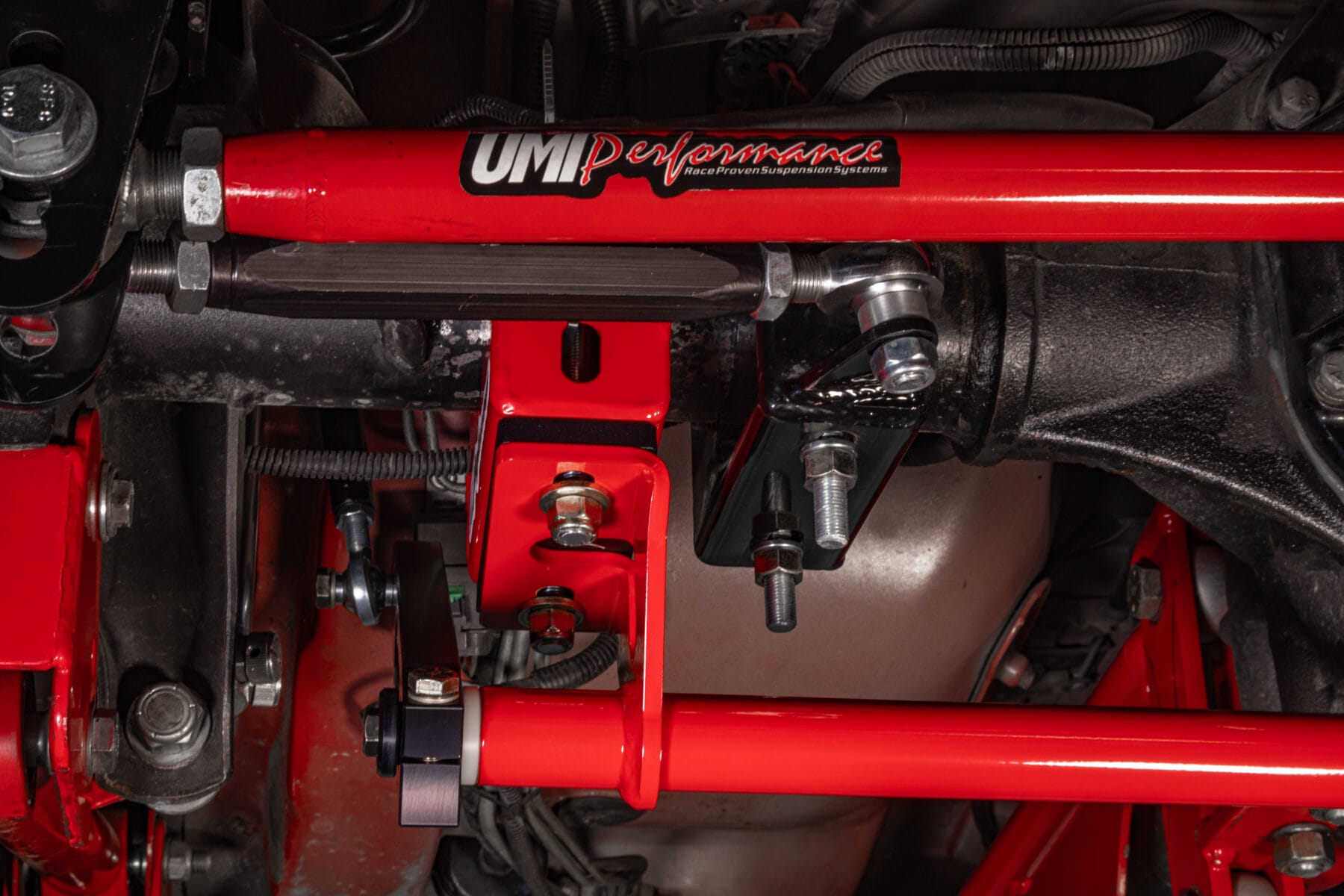

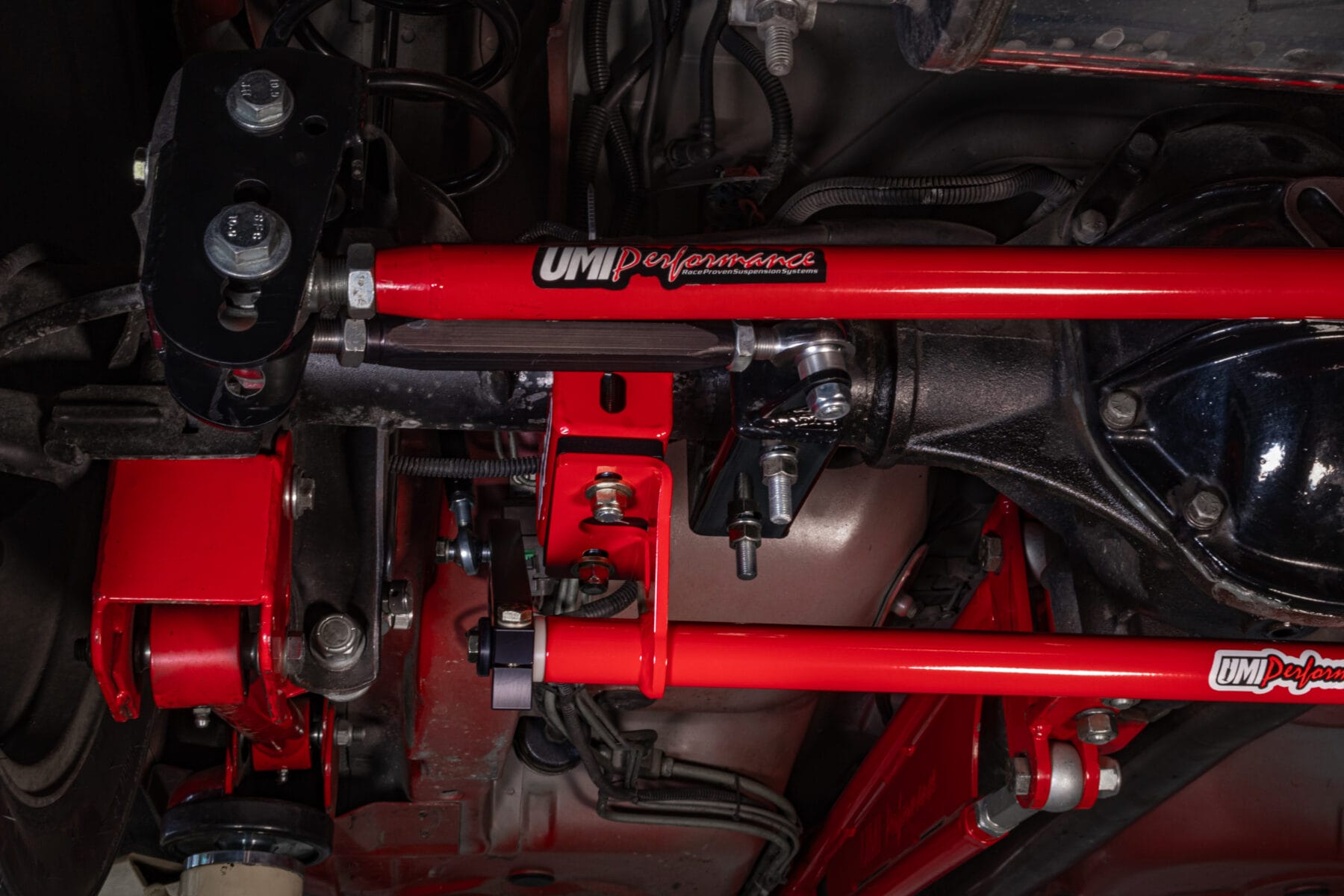

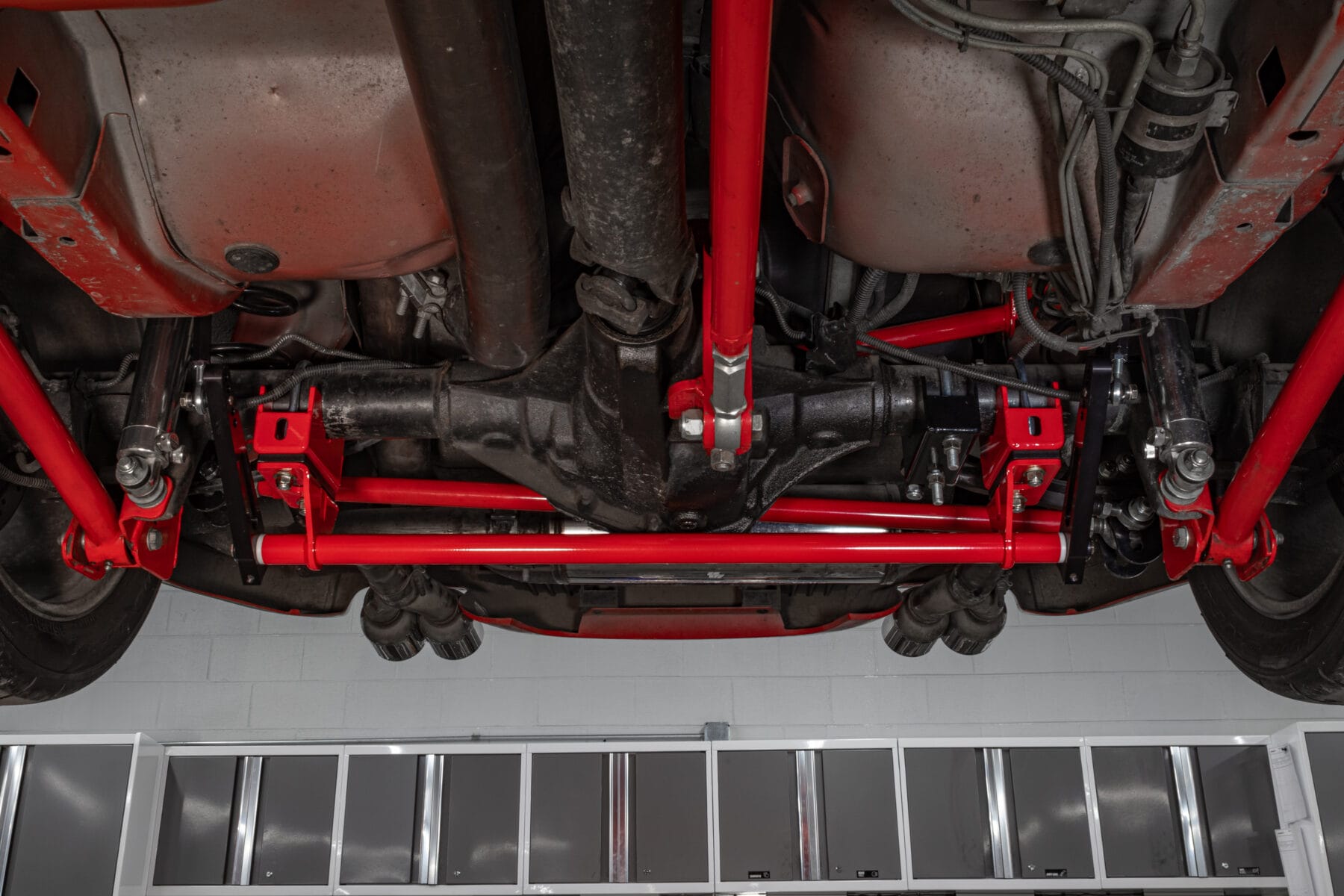

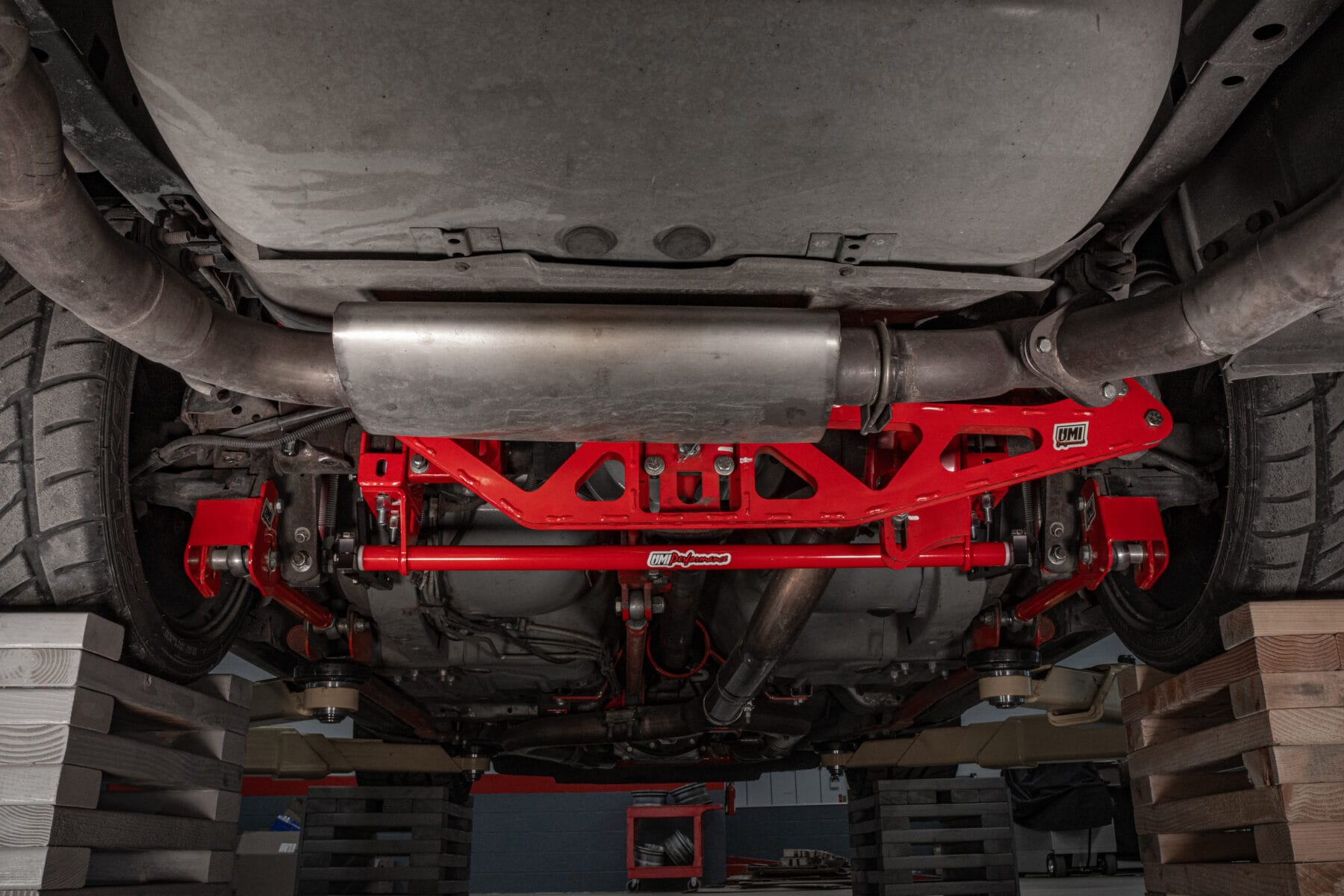

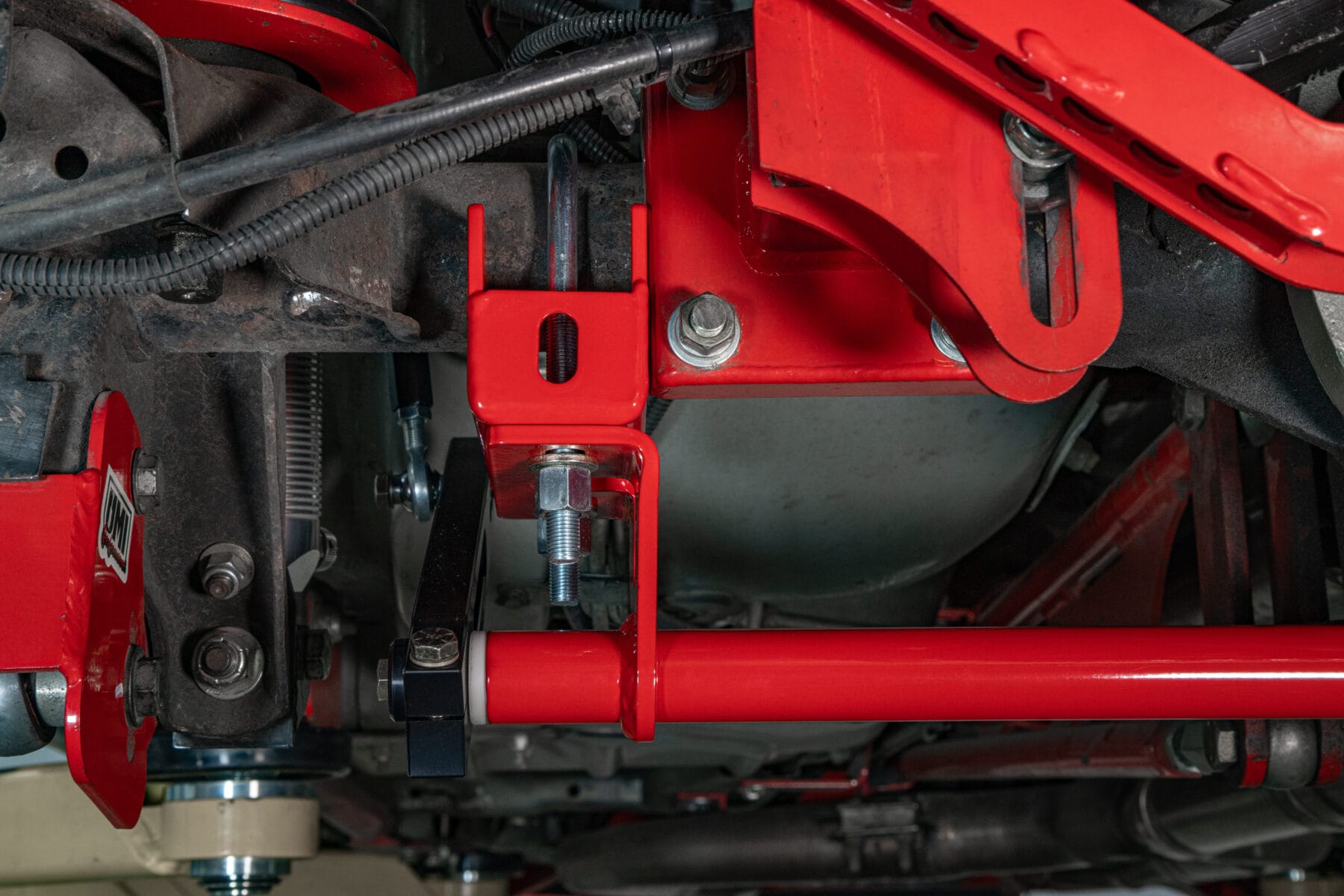

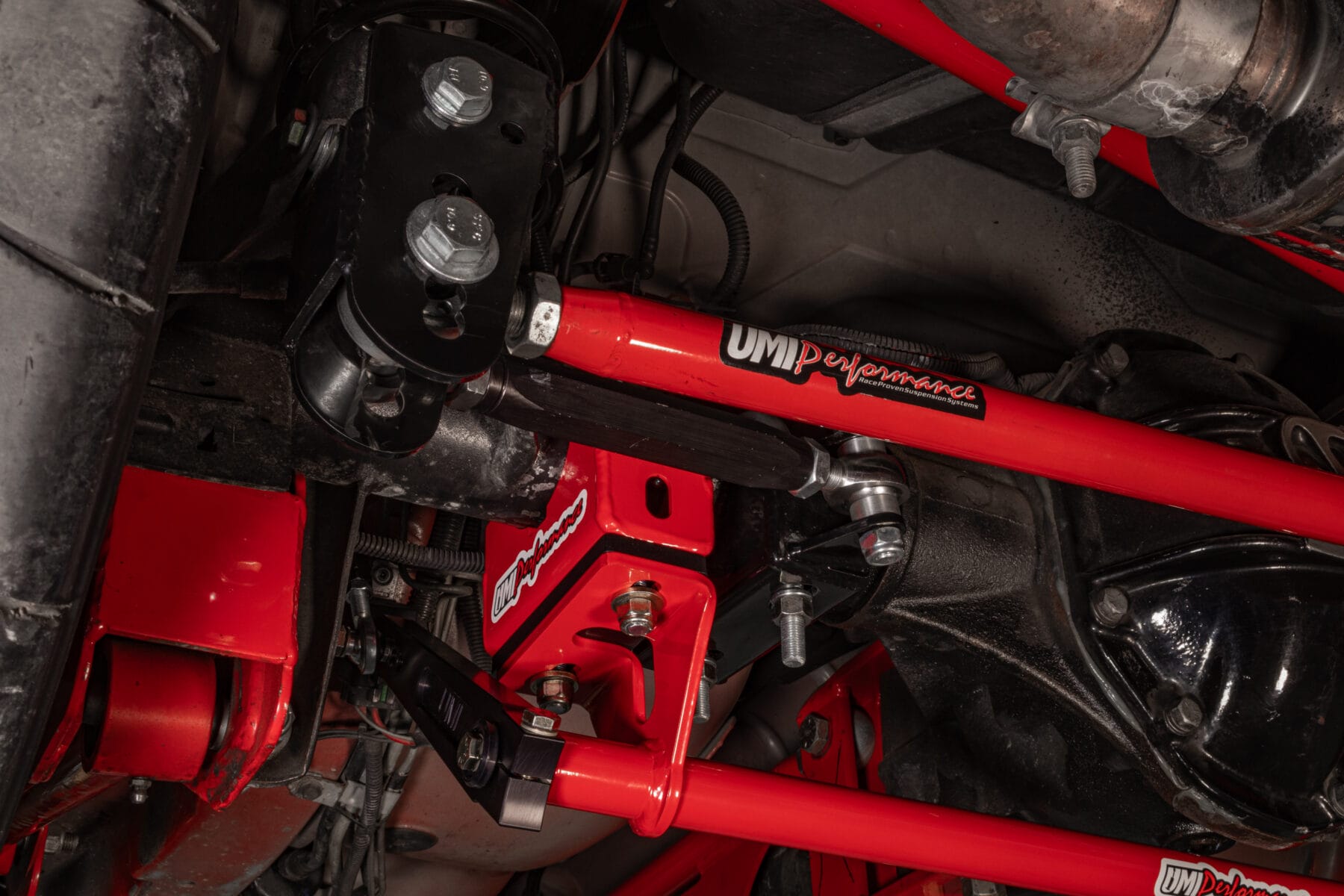

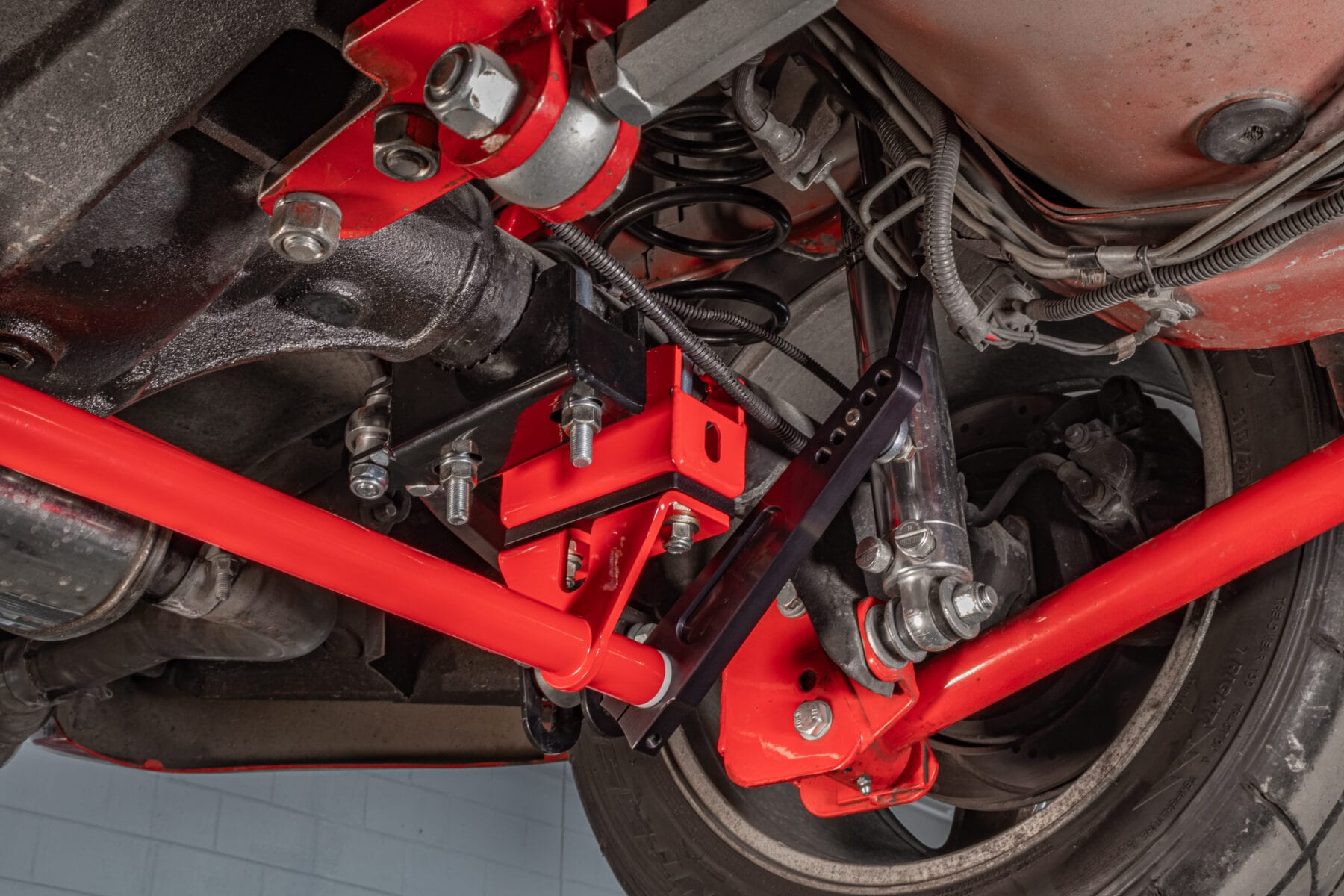

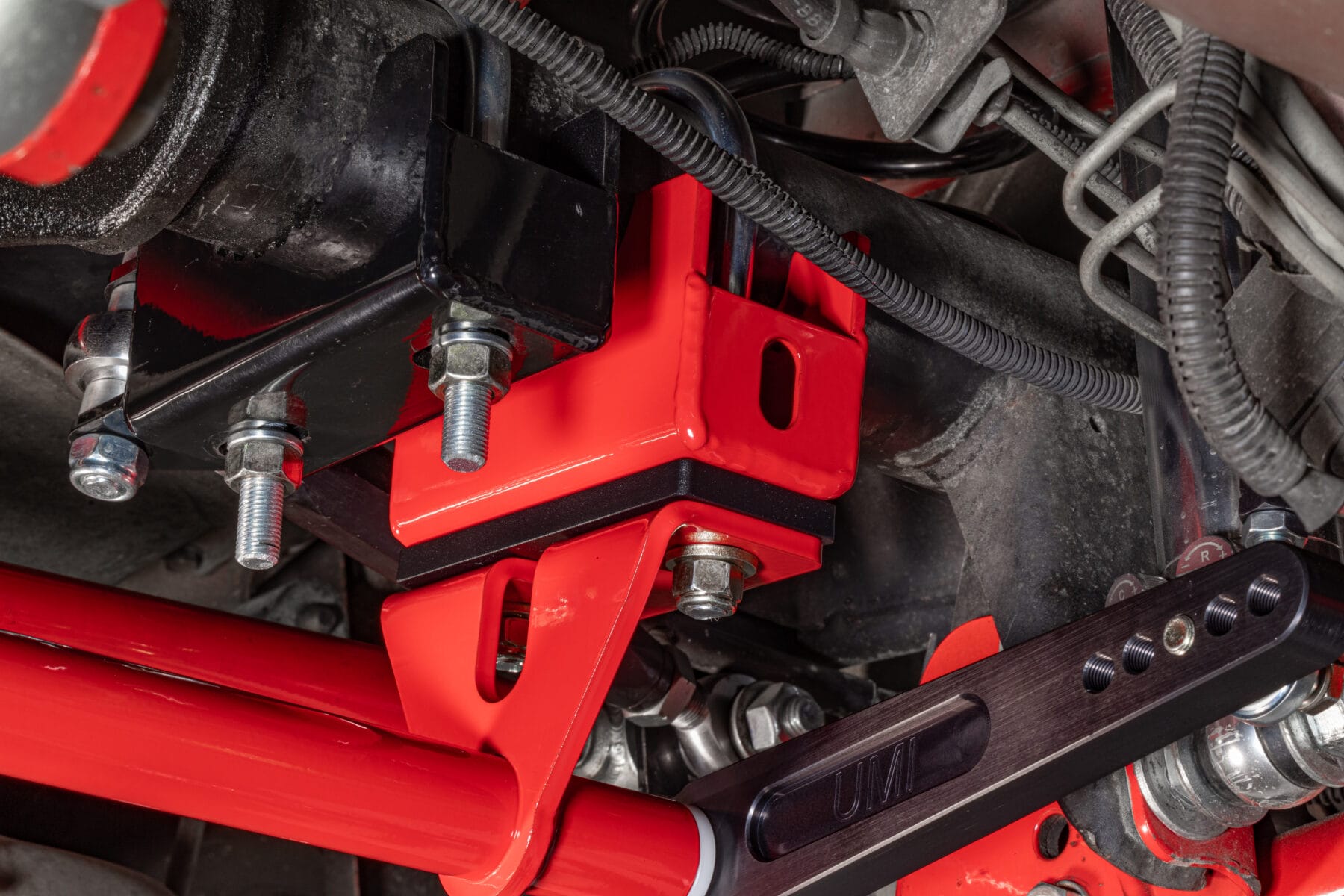

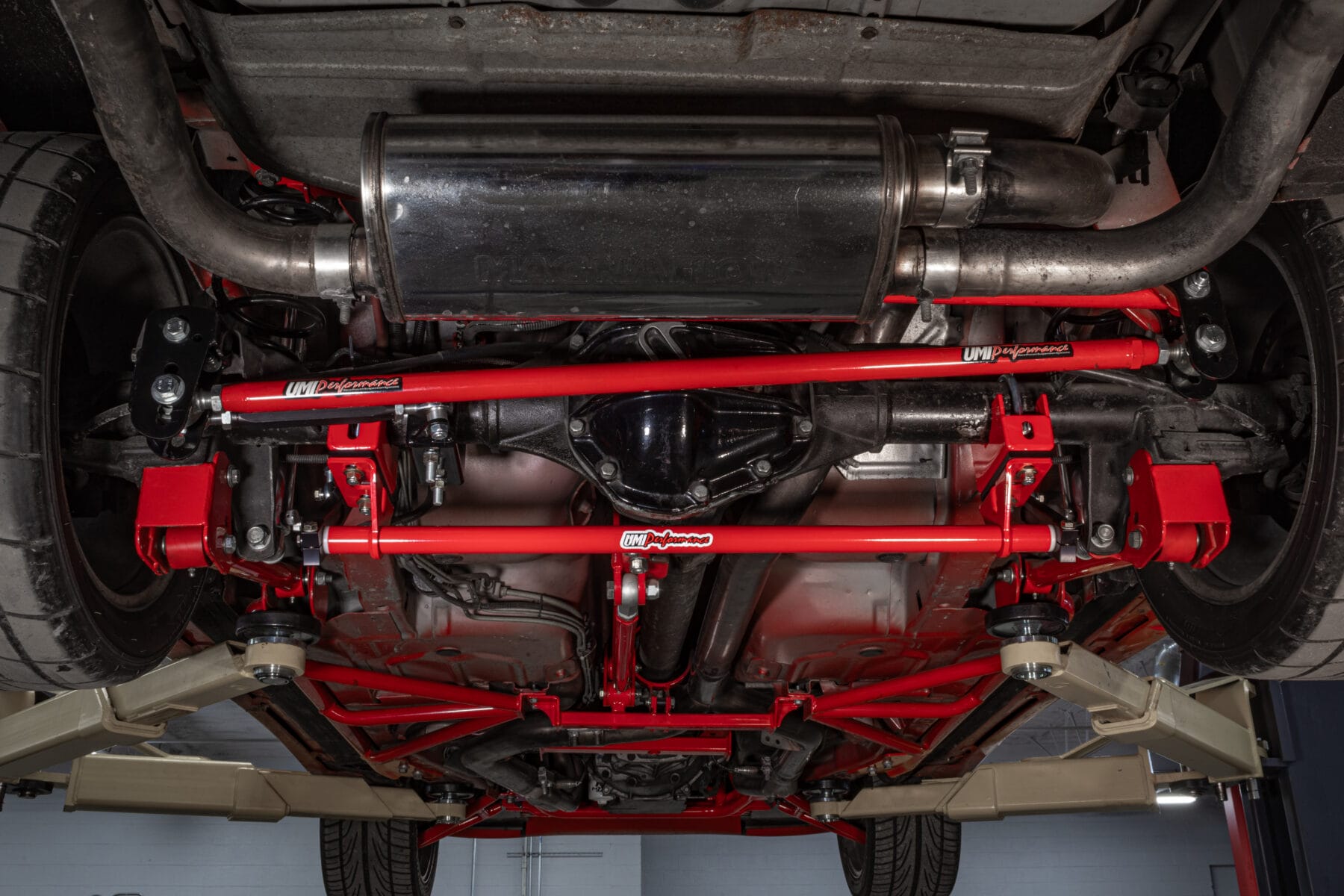

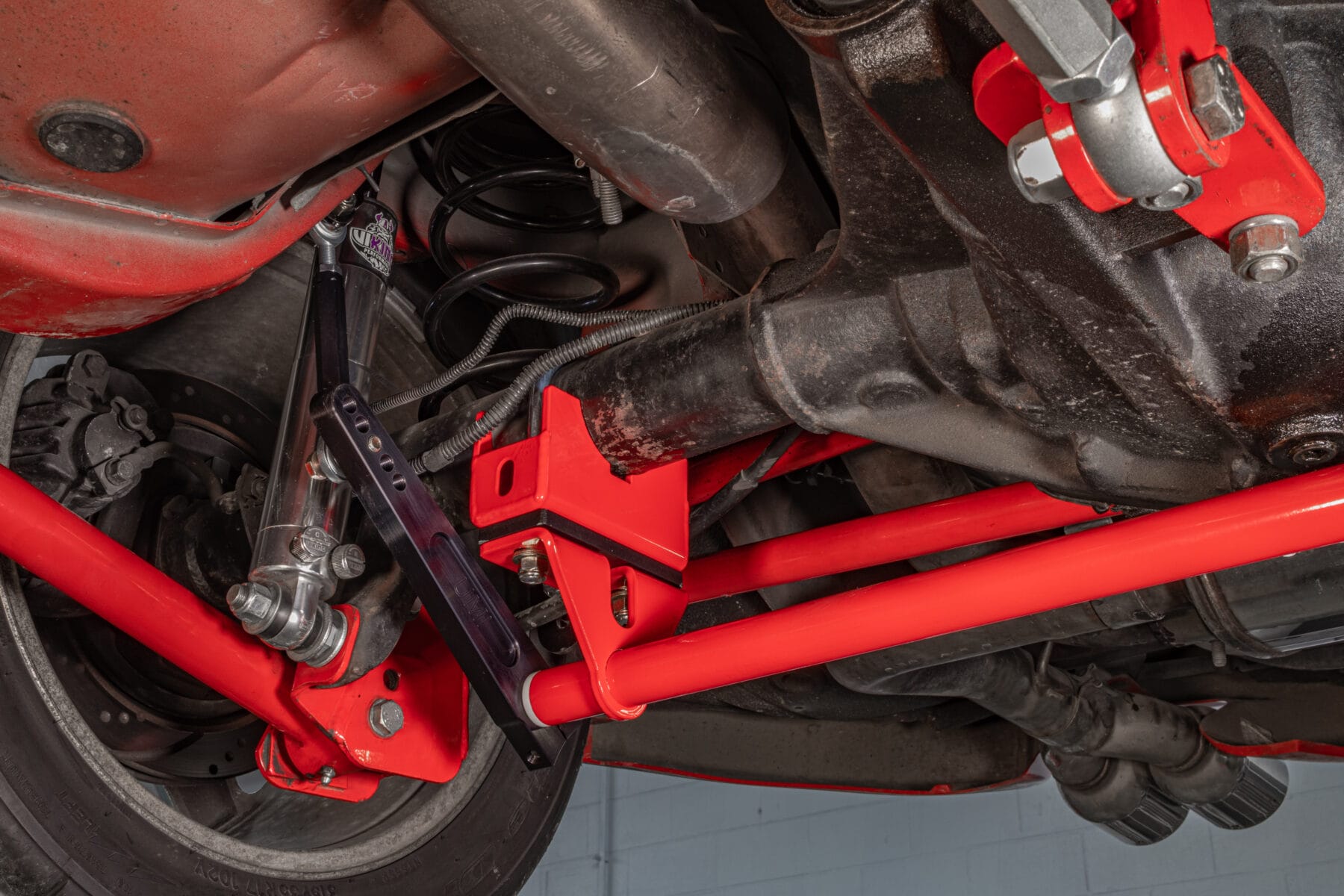

Installation Pictures
PRODUCT DESCRIPTION
UMI Performance's Race-Ready Splined Rear Sway Bar
UMI's race-inspired 1982-2002 F-Body splined rear sway bar features cutting-edge design and performance. Offering true and consistent rates ideal for fine-tuning rear anti-roll dynamics, providing a significant advantage for autocross or track car setups. Constructed with HD alloy steel, the splined bar is housed in a robust 4130 chromoly tube and equipped with bind-free Delrin bushings. The premium design includes 6160 billet aluminum adjusters with high-quality rod ends, and paired with 5-position billet aluminum mounting arms, making this the ideal high-end rear sway bar solution for your F-body.PRODUCT FEATURES
- Precision, professional style splined torsion bar
- 5 way adjustable billet aluminum arms
- Heavy duty tube mount with smooth Delrin bushings
- Includes 2.75" and 3" U-bolts
- Works with aftermarket rear ends without back brace
- Race proven on the UMI '99 Camaro
- 100% Made in USA
Alloy Spline Bar
HD solid 48-spline aircraft-grade alloy steel bar sits in 1.265" replaceable bind-free Delrin bushings.

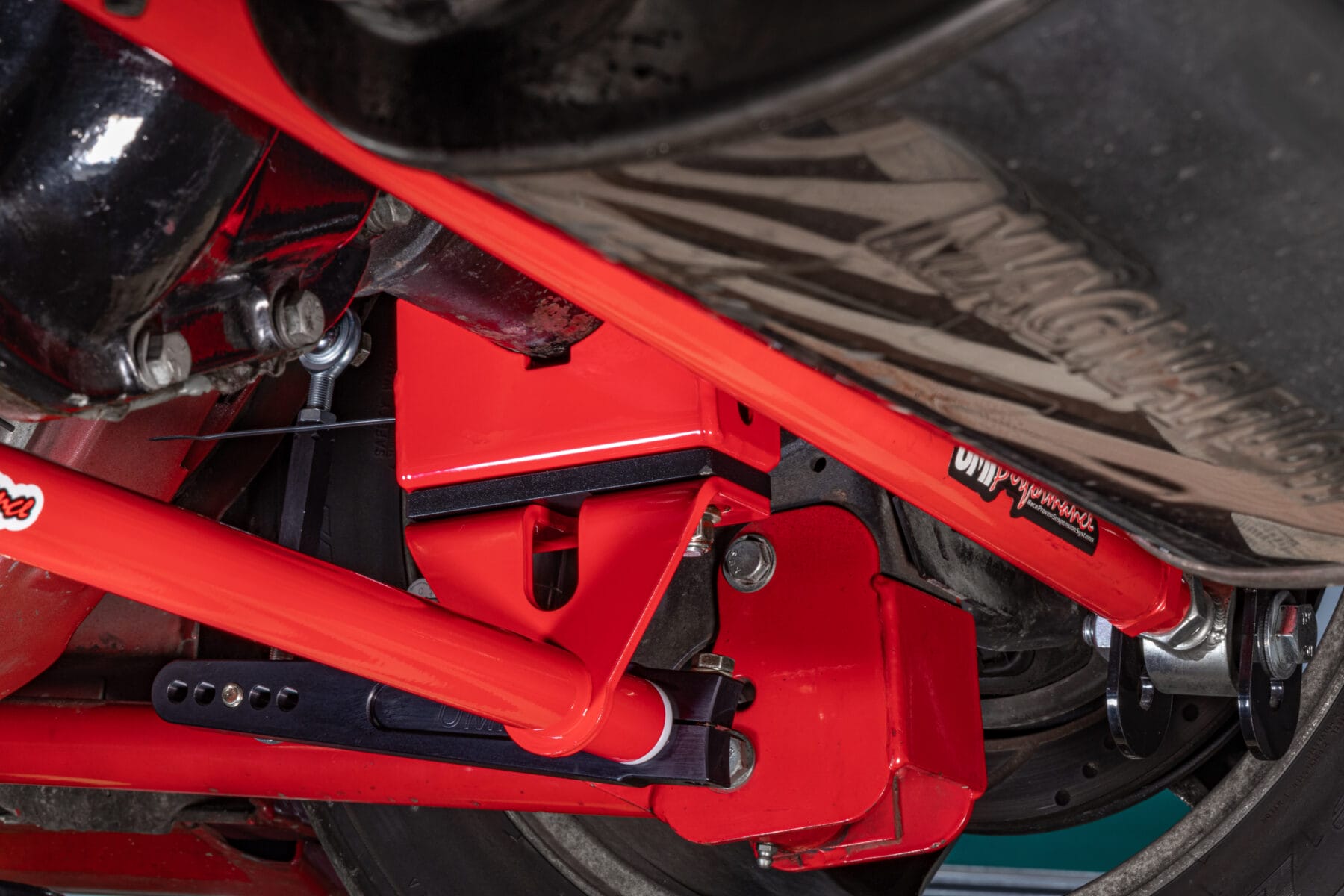

Billet Mounting Arms
0.75" thick solid CNC-machined billet aluminum mounting arms provide 5 rating options for any application.
Chromoly Tubing
1.25" OD 0.83" wall 4130 Chromoly housing with 0.25" laser-cut mounting plates
U-Bolts Included
Includes both 2.75" and 3" high-grade U-bolts to fit stock and various aftermarket axle housings.
High-Grade Hardware
All mounting hardware included

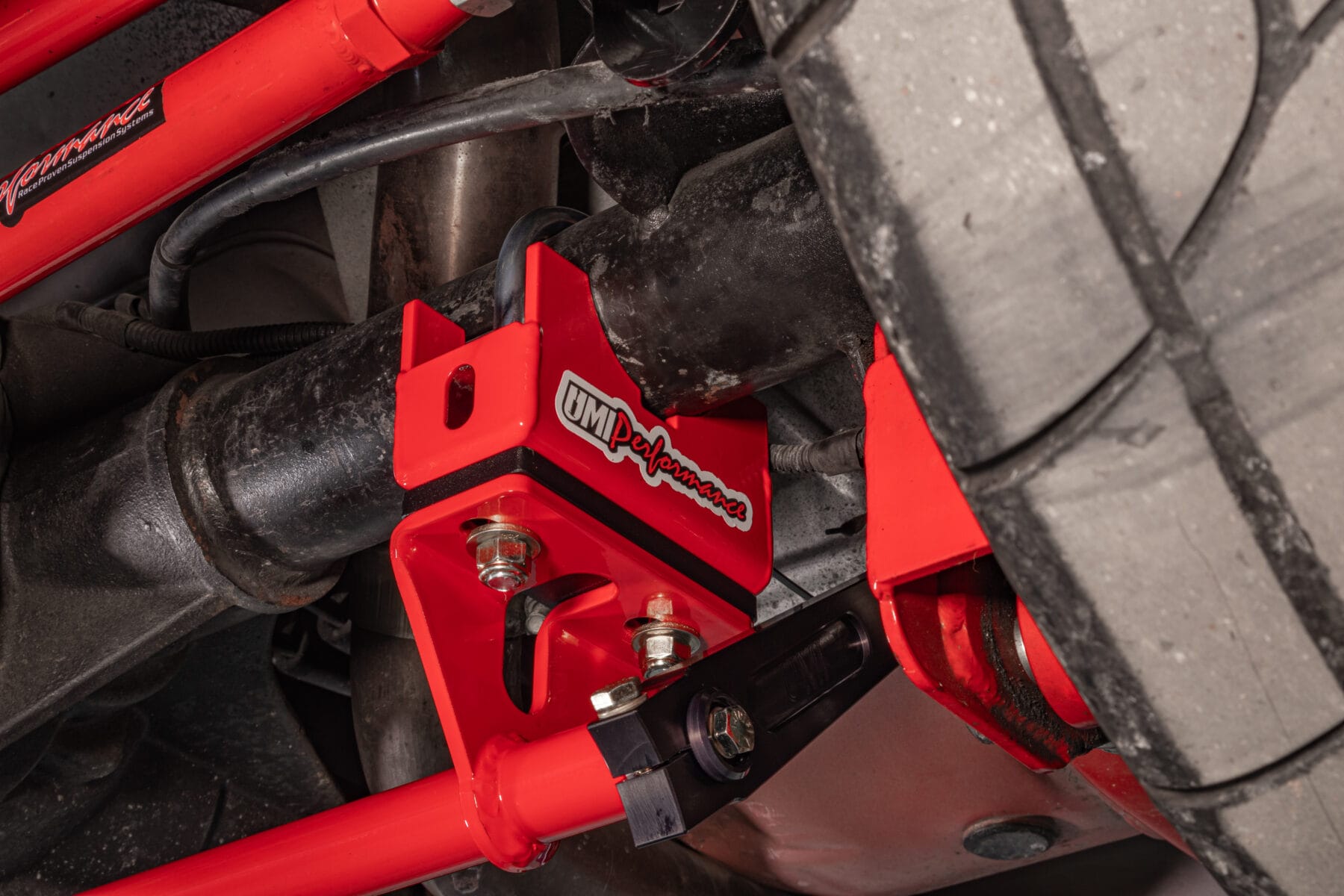

HD Sway Bar Mounts
Precision-bent 3/16" thick sway bar mounts.

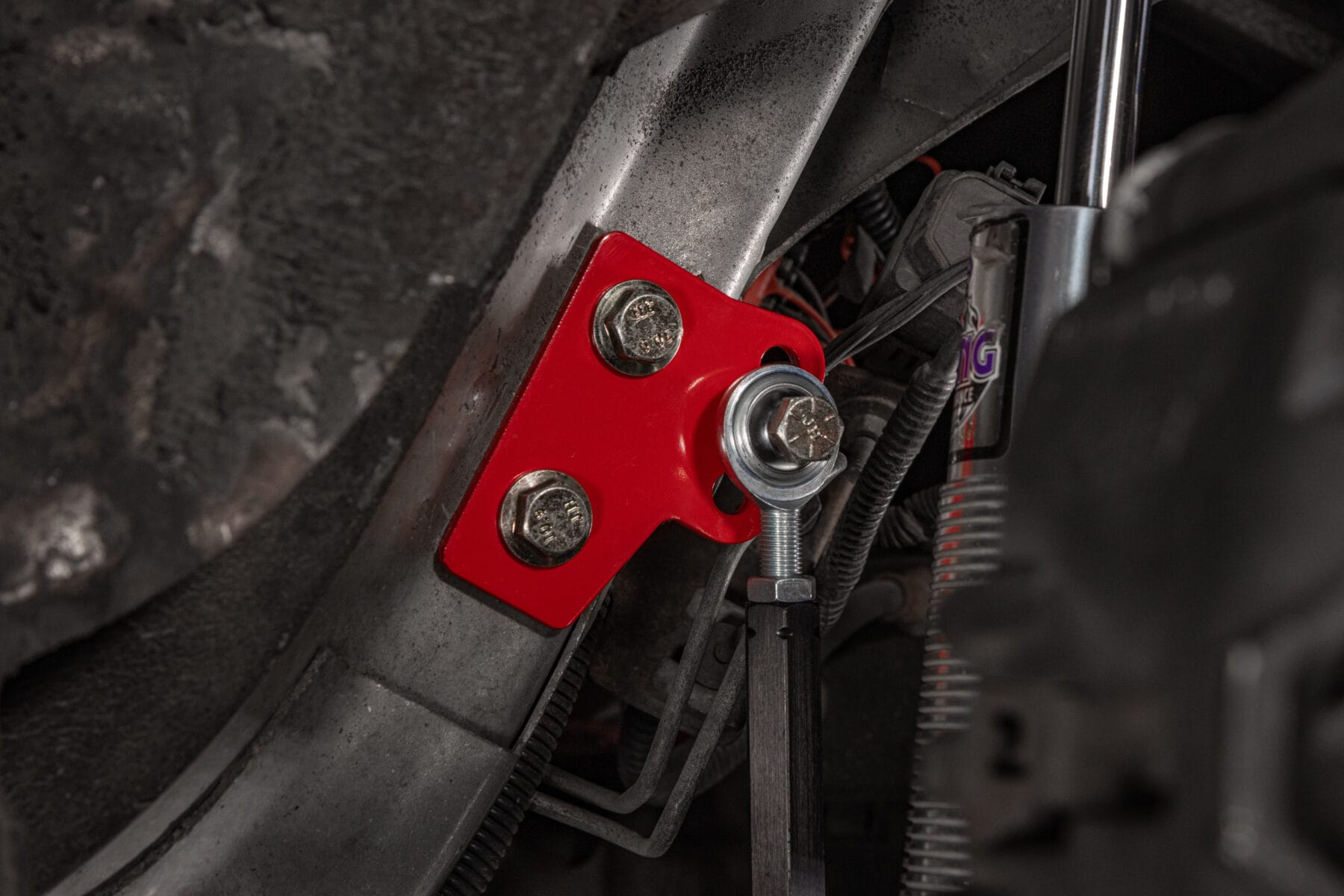

HD Upper Mounts
0.1875" laser-cut and powder-coated bolt-in upper mounting plates replace stock mounting plates.
HD End Links
3" 6061 anodized aluminum hex adjuster houses (2) 3/8" teflon-lined chromoly sperical rod ends for easy on-car preload adjustments.
Spacer Plates
3/8" thick anodized plates provide additional rear-end clearance when needed.
| Color |
Red ,Black |
|---|---|
| Axle Diameter |
2.75" ,3" |
| Adjustable |
Yes |
| UOM |
Each |
| Direct Bolt-On |
Yes |
| Bushing Type |
Rod End |
| Fitment | |
| Finish |
Powder Coat |
| Hardware |
Included |
| Modifications |
None |
Why Choose
UMI Performance
21 Years In The Industry
North American Raw Materials
Proudly partnering with leading USA steel suppliers, we source the finest North American mined and milled steel
Precision Bent DOM Tubing
Machine-guided DOM tubing bends maintain correct geometry while maintaining material strength.
Laser Cut Plating
We take North-American sourced plating and precision-cut each component with the latest laser-cutting technology.
Durable Powder Coating
Each finished part is properly prepped and coated with high quality Tiger Dry Lac powder coat, providing a tough long-lasting finish.
Consistent Welds
Our highly-skilled welders and robotic-welders provide consistent welds and ultimate part penetration.
100% USA Made
We take pride in providing 100% USA-Manufactured suspension components.
Shipping Guidelines
Flat Rate Shipping ($12.95) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.
All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.
Return Information
All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.
Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]
This '2147 - 1982-2002 GM F-Body Rear Sway Bar, Splined' fits the following platforms:
1982-2002 GM F-Body
- 1982-2002 Chevrolet Camaro
- 1982-2002 Pontiac Firebird
This 2147 - 1982-2002 GM F-Body Rear Sway Bar, Splined fits the following vehicles:
Chevrolet
Camaro
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac
Firebird
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
- 1993 Pontiac Firebird
- 1994 Pontiac Firebird
- 1995 Pontiac Firebird
- 1996 Pontiac Firebird
- 1997 Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
